SPDT 1NO 1NC Long Straight Hinge Lever Momentary Micro Switch

SPDT 1NO 1NC Long Straight Hinge Lever Momentary Micro Switch

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

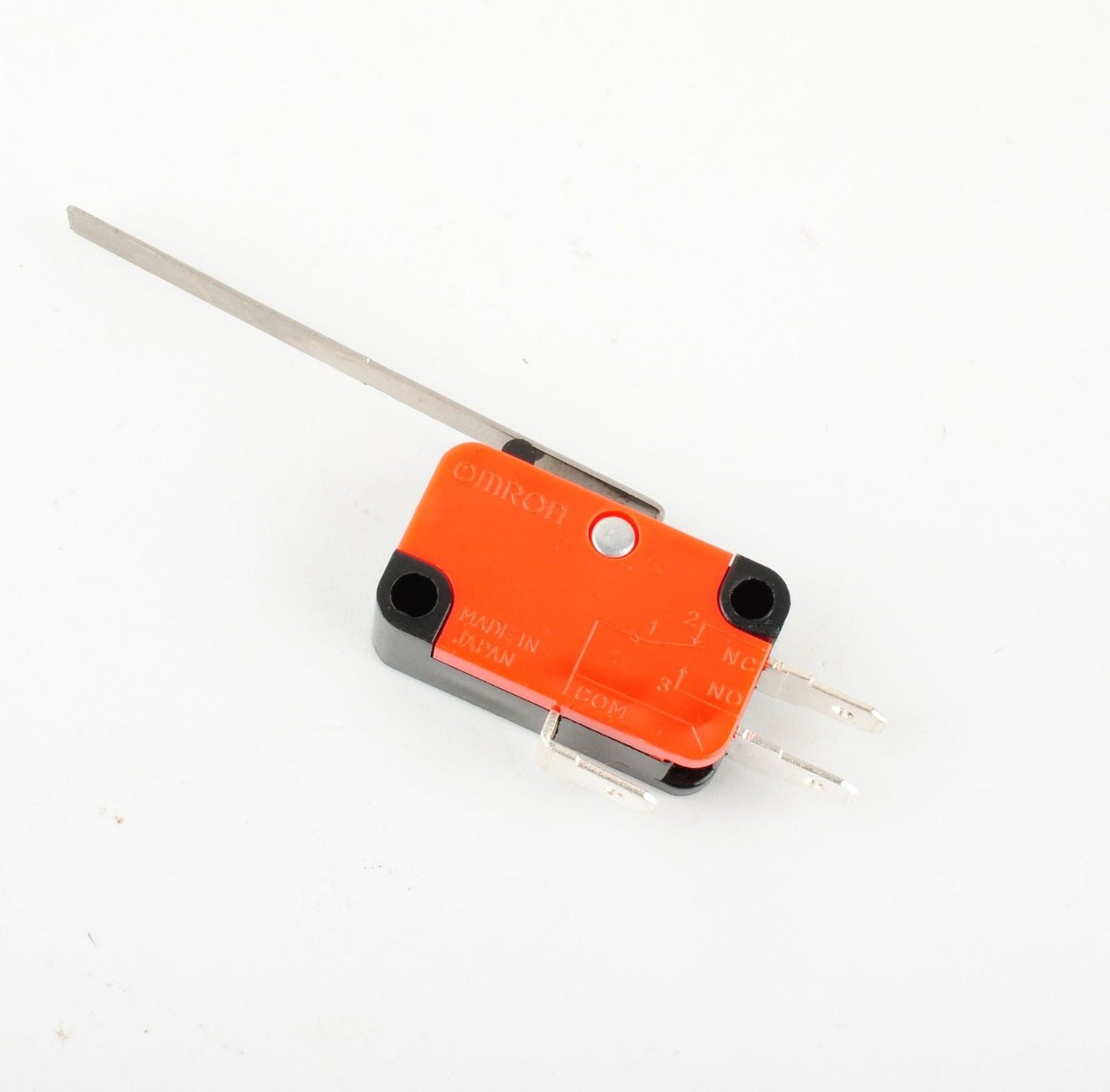

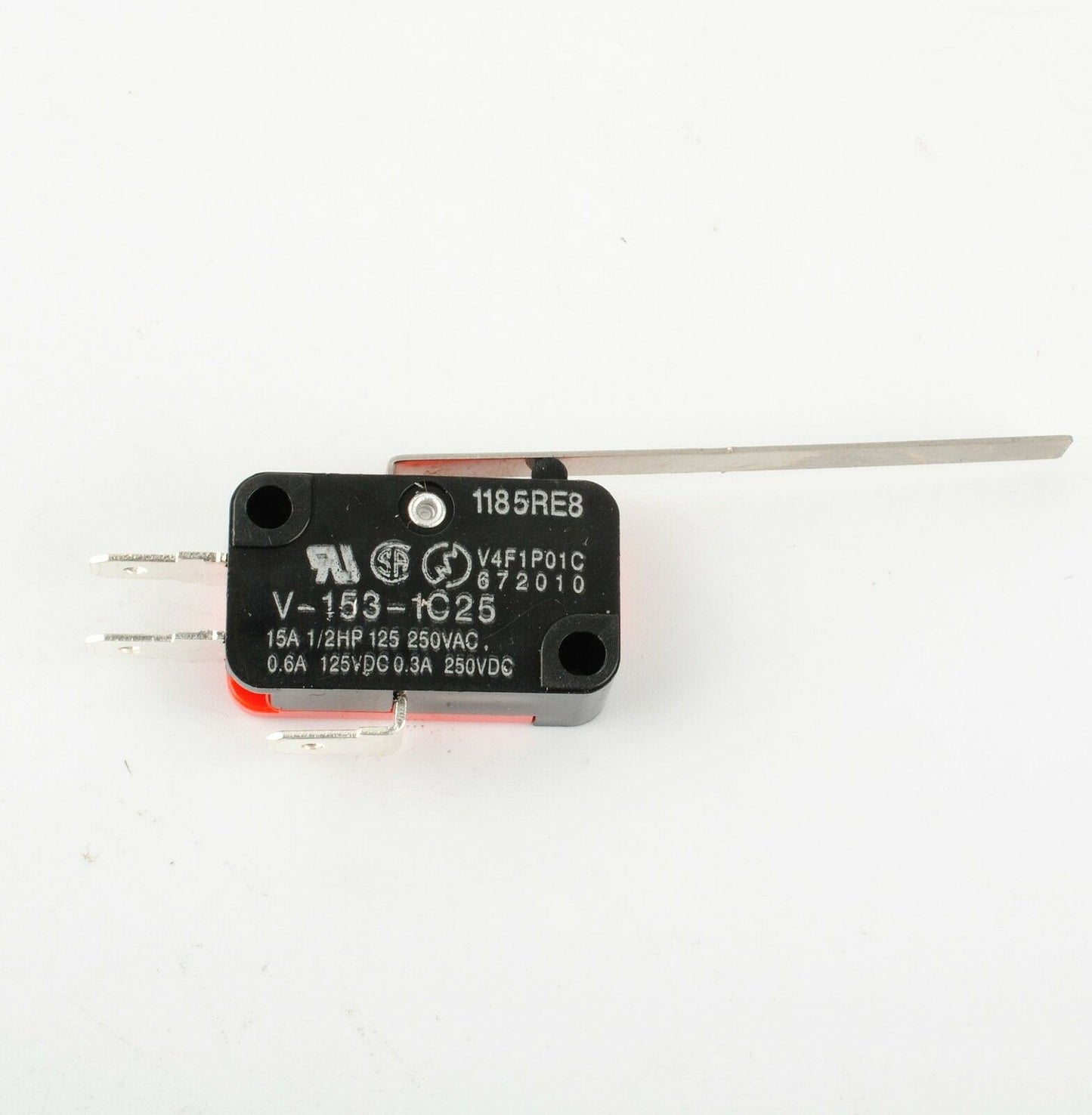

OV-153-1C25 Micro Limit Switch Long Straight SPDT Hinge Lever Type Arm

Features:
Long Hinge Lever Actuator, 1NO+1NC Contact Configuration, 3 Terminals.
Designed to control the movement of a mechanical part.
Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded.

High precision mechanism design offering acute operation and long life. In snap action contacts, the movement of the actuator applies force to an over center mechanism. This mechanism creates a quick change in contact state when the trip point is reached.
Reversing the motion of the actuator to a given reset point causes the contacts to snap back to their original position.
Snap action contacts have different trip and reset points. The distance between the trip and reset point is called the travel to reset, hysteresis, or differential. Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration.

Snap action contacts ensure repeatable performance in applications that involve low speed actuators. The amount of travel of the contacts is also not dependent on the amount of travel by the actuator.
3 prongs. One is for normally open the other makes it normally closed. It can be either! It will work.


Product Name : Micro Switch
Model No. : OV-153-1C25
Actuator Action : Momentary
Actuator Type : Long Straight Hinge Lever
Rating : 15A, 1/2HP, 125/250VAC;0.6A,125VDC; 0.3A, 250VDC
Contact Configuration : 1NO,1NC(SPDT)
Switch Body Size : ~2.8 x 1 x 1.6cm / 1.1"x 0.39"x 0.63"(L*W*H)
Fixing Holes Dia. : ~0.32cm / 0.13"
Button Height : ~0.3cm / 0.12"
Actuator Size : ~5.1 x 0.4cm / 2.0"x 0.16"(L*W)
Terminal Blade Width : ~0.47cm / 0.19"
Material : Plastic & Metal
Main Color : Red & Black
Net Weight : 8g

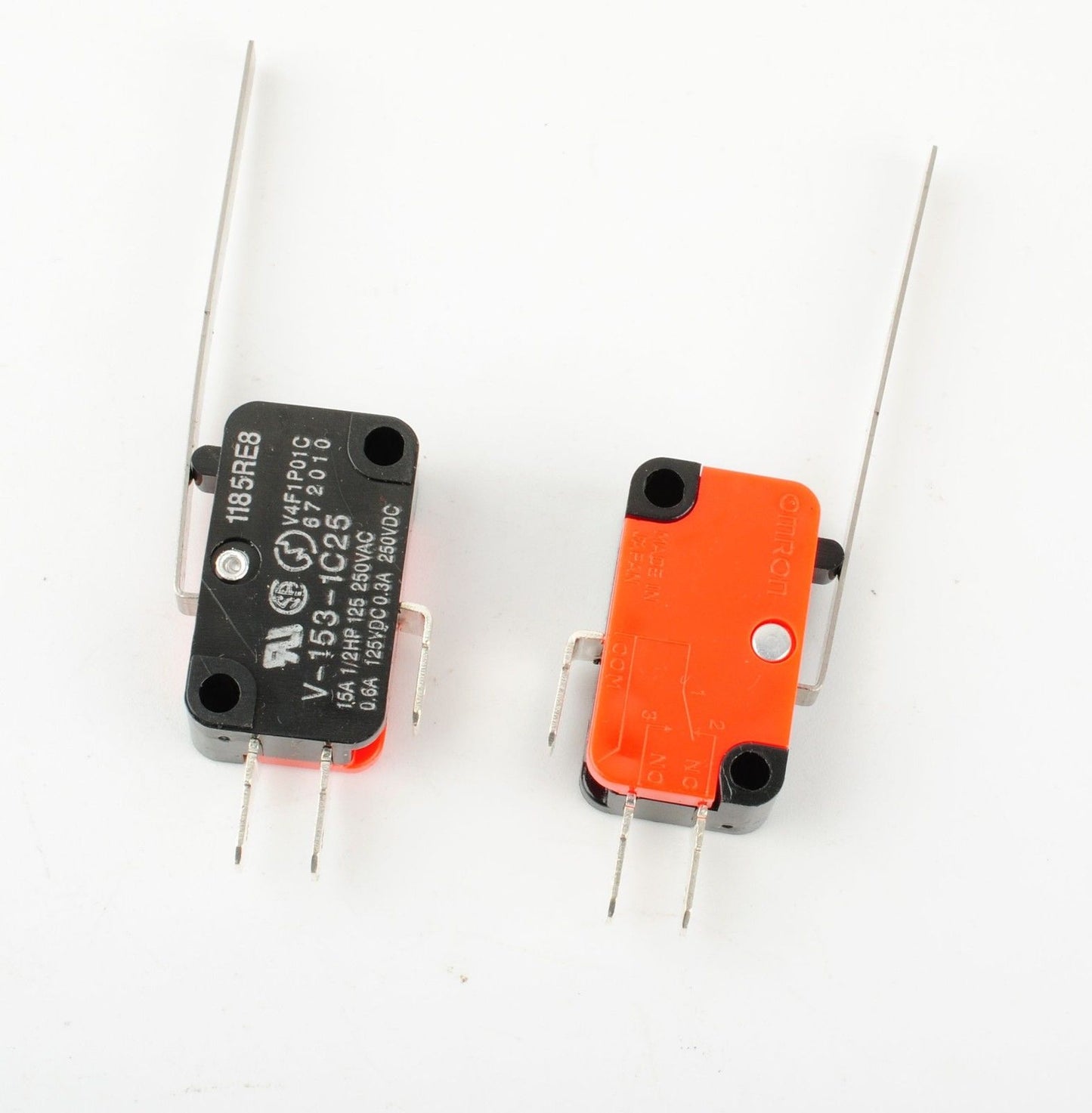

Package Content : 2 x Micro Switches
